Functional description and benefits

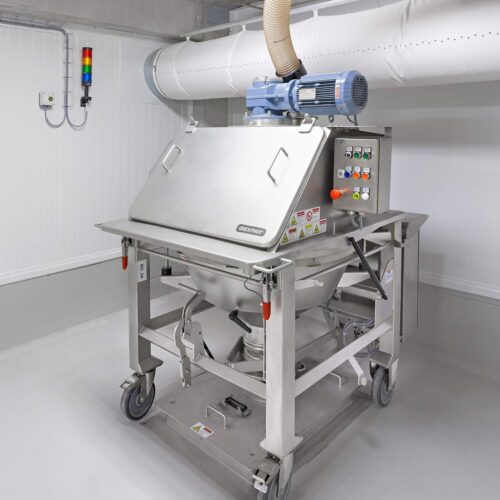

The product intake station VIB & PRESS is used for the intake and control screening of powdery products, especially for difficult products which tend to forming clumps.

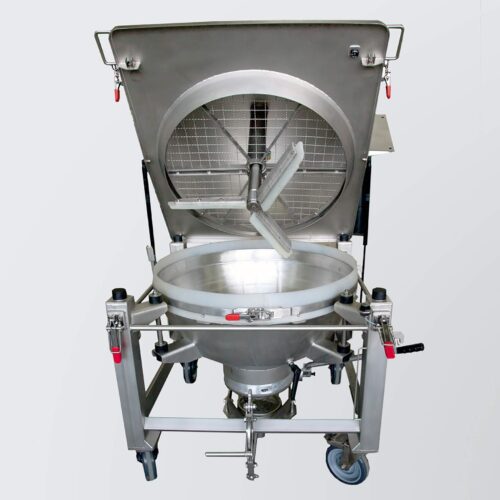

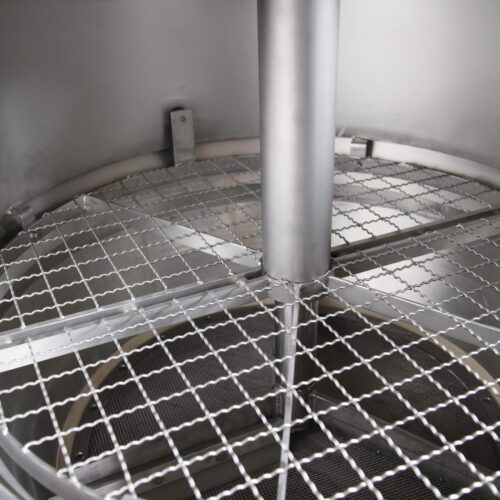

With the innovative control screener VIB & PRESS from Daxner, two actions are performed at once: Besides the vibrating screen (VIB), which performs the screening action, the product is pressed through the flat screen (PRESS) by slowly rotating paddles located just above the screen mesh. Agglomerations and lumps in the products are dissolved gently. The vibration keeps the screen free of residue and cleans it at the same time.

The paddles are driven by a geared motor with variable frequency drives.

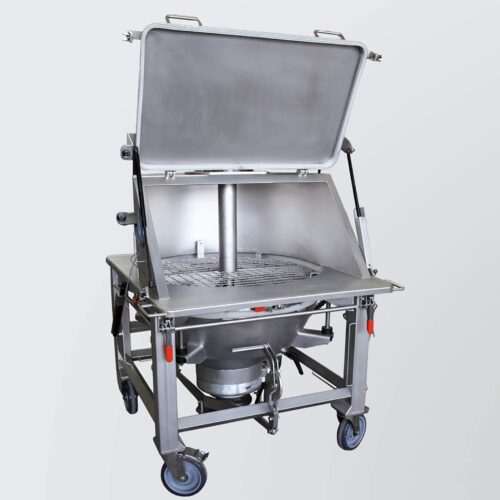

The entire top of the machine can be removed by a simple tilting mechanism, which enables a fast and easy cleaning. Optional design with a controls systems and complete wiring “plug & play” also available.

Also a permanent-magnet for the separation of magnetic impurities can be incorporated.

Advantages

Gentle screening of sensitive, difficult products like egg powder, fat powder, pepper powder etc., even when working with small screen mesh widths

Smooth de-agglomeration and lump-breaking effect

The vibration keeps the screen free of residue and cleans it at the same time.

Fast and easy cleaning: The entire top of the machine can be removed by a simple tilting mechanism; the screen can be easily exchanged without the use of tools

Round, robust construction prohibits material residue in corners and edges
